Map Class Hierarchy

MapLayer define common map operation, like setCenter, Zoom in, Zoom out, Pan Direction and coordinates conversion (from Map to screen and vice versa) and it’s a common base class for all digital map.

MapLayerContainer is container classes; manage a collection of Map layers allow them setCenter, Zoom In, Zoom out and Pan Direction together.


DigitalMap introduces Map Services like Geocoding, Reverse Geocoding and Routing service. It supports incorporate different Map Services implementation.


RasterMap deals with online, stored map images tiles, it support multi-threads and also provide listener to monitor the progress of downloading or reading map image tiles.


VectorMap is a subclass of RasterMap, so it supports all functions provided by RasterMap, instead of downloading image tiles from map server or reading map image tiles from local files, Vector renders map image tile from MapInfo compatible vector map file also supports Geoset which managers multiple map feature layers.

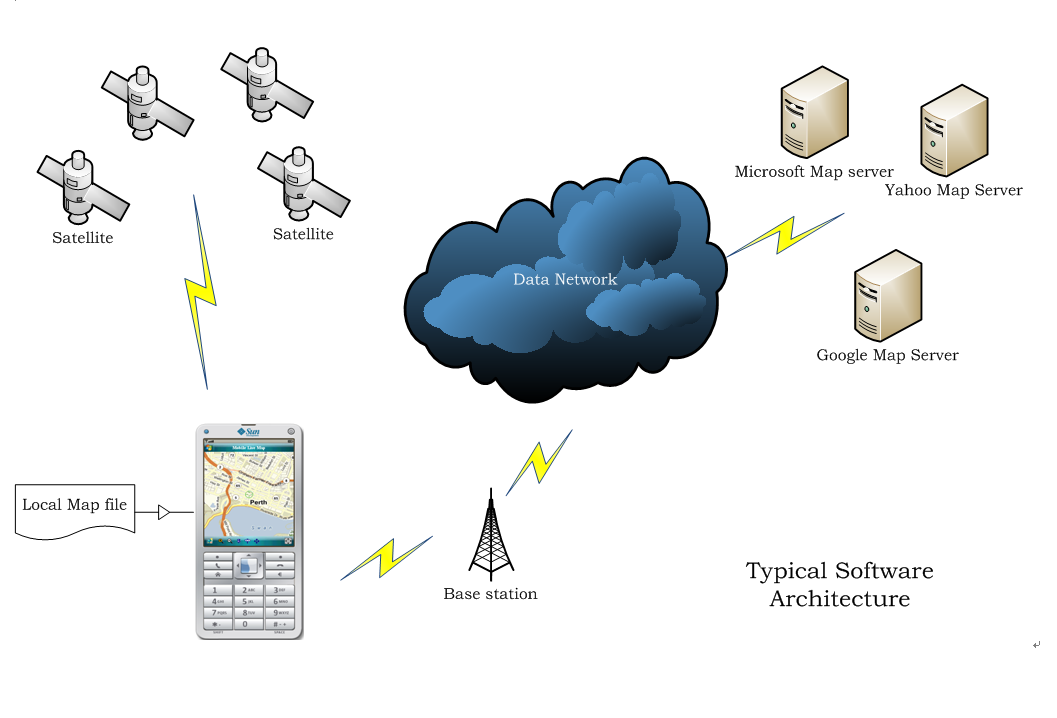

Typical Software architecture

Guidebee Map API –Package Drawing.Geometry

Package geometry provides the Java 2D classes for defining and performing operations on objects related to two-dimensional geometry.

PathIterator	The PathIterator interface provides the mechanism for objects that implement the Shape interface to return the geometry of their boundary by allowing a caller to retrieve the path of that boundary a segment at a time.
IShape	The Shape interface provides definitions for objects that represent some form of geometric shape.
AffineTransform	The AffineTransform class represents a 2D affine transform that performs a linear mapping from 2D coordinates to other 2D coordinates that preserves the “straightness” and “parallelness” of lines.
Arc	Arc store a 2D arc defined by a framing rectangle, start angle, angular extent (length of the arc), and a closure type (OPEN, CHORD, or PIE).
Area	An Area object stores and manipulates a resolution-independent description of an enclosed area of 2-dimensional space.
CubicCurve	The CubicCurve class defines a cubic parametric curve segment in (x, y) coordinate space.
Dimension	The Dimension class encapsulates the width and height of a component (in integer precision) in a single object.
Ellipse	The Ellipse class describes an ellipse that is defined by a framing rectangle.
FlatteningPathIterator	The FlatteningPathIterator class returns a flattened view of another PathIterator object.
Path	The Path class represents a geometric path constructed from straight lines, and quadratic and cubic (Bezier) curves.
Line	This Line represents a line segment in (x, y) coordinate space.
Point	A point representing a location in (x, y) coordinates space, specified in integer precision.
Polygon	The Polygon class encapsulates a description of a closed, two-dimensional region within a coordinate space.
Polyline	The Polyline class encapsulates a description of a collection of line segments within a coordinate space.
QuadCurve	The QuadCurve class defines a quadratic parametric curve segment in (x, y) coordinate space.
Rectangle	A Rectangle specifies an area in a coordinate space that is enclosed by the Rectangle object’s upper-left point (x, y) in the coordinate space, its width, and its height.
RectangularShape	RectangularShape is the base class for a number of Shape objects whose geometry is defined by a rectangular frame.
RoundRectangle	The RoundRectangle class defines a rectangle with rounded corners defined by a location (x, y), a dimension (w x h), and the width and height of an arc with which to round the corners.

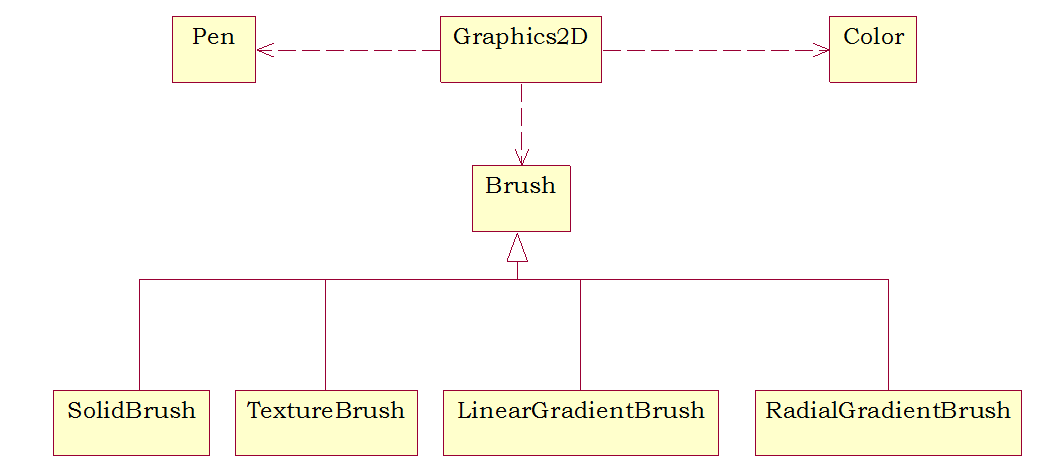

Guidebee Map API –Package Drawing

The Drawing package provides access to basic 2D graphics functionality.

Brush	Classes derived from this abstract base class define objects used to fill the interiors of graphical shapes such as rectangles, ellipses, pies, polygons, and paths.
Color	The Color class is used to encapsulate colors in the default serge color space Every color has an implicit alpha value of 1.0 or an explicit one provided in the constructor.
Graphics2D	This Graphics2D class provides more sophisticated control over geometry, coordinate transformations, color management, and text layout.
LinearGradientBrush	The LinearGradientBrush class provides a way to fill a Shape with a linear color gradient pattern.
Pen	The Pen class defines a basic set of rendering attributes for the outlines of graphics primitives, which are rendered with a Graphics2D object that has its Stroke attribute set to this Pen.
RadialGradientBrush	The RadialGradientBrush class provides a way to fill a shape with a circular radial color gradient pattern.
SolidBrush	Defines a brush of a single color.
TextureBrush	The TextureBrush class provides a way to fill a Shape with a texture that is specified as an Image.

Guidebee Map API –Package Gis.Navigation

The location packages defines API which provide turn by turn navigation instruction, the core class is NavigationEngine, it internally includes three working thread

• Location monitor thread used to monitor current location against current navigation route if there’s one and adjust raw location to the nearest position on the route.
• Voice command generator generate thread create upcoming voice command based on current step and location and put them to the voice command queue.

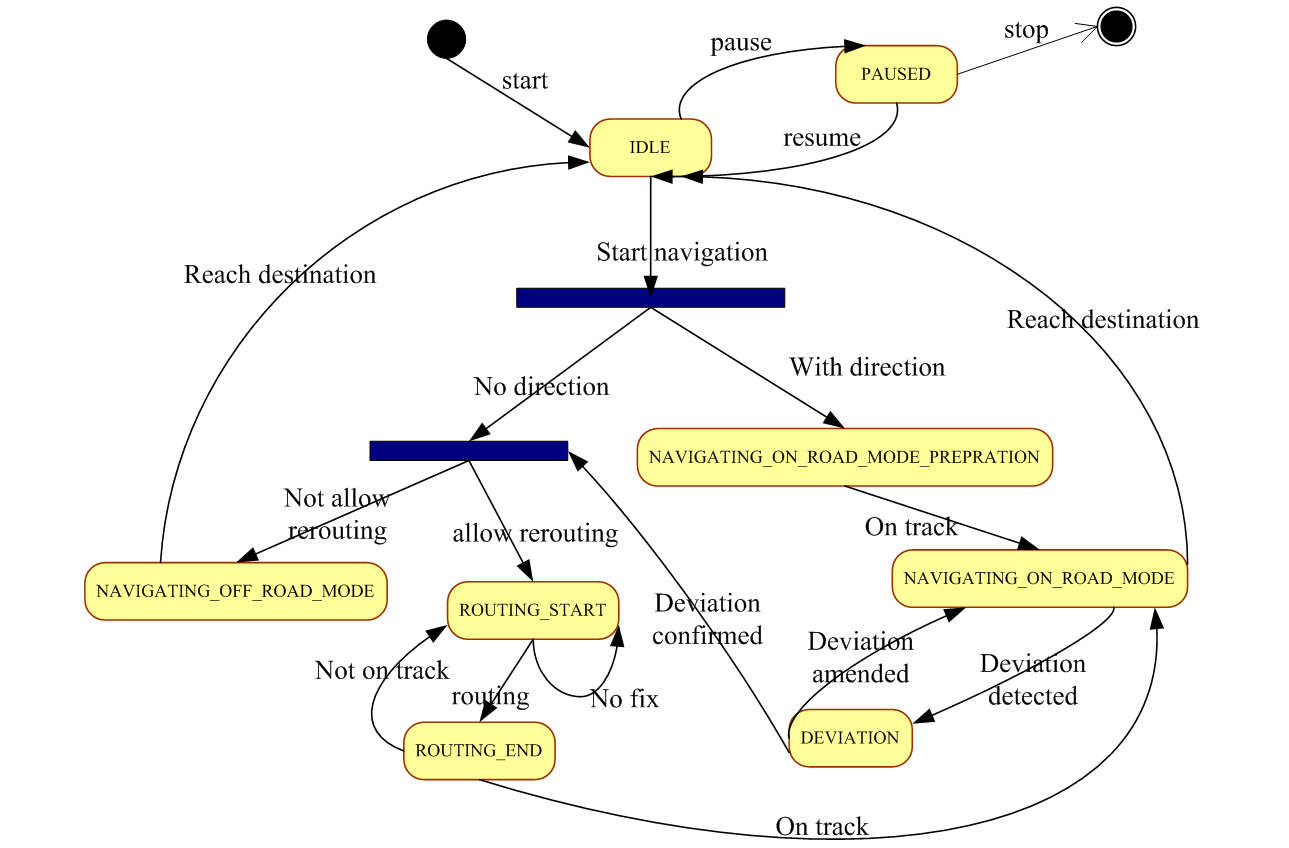

• Voice command processor pick up the voice command from the queue and notify the voice command listenerHere’s state transition diagram of NavigationEngine:

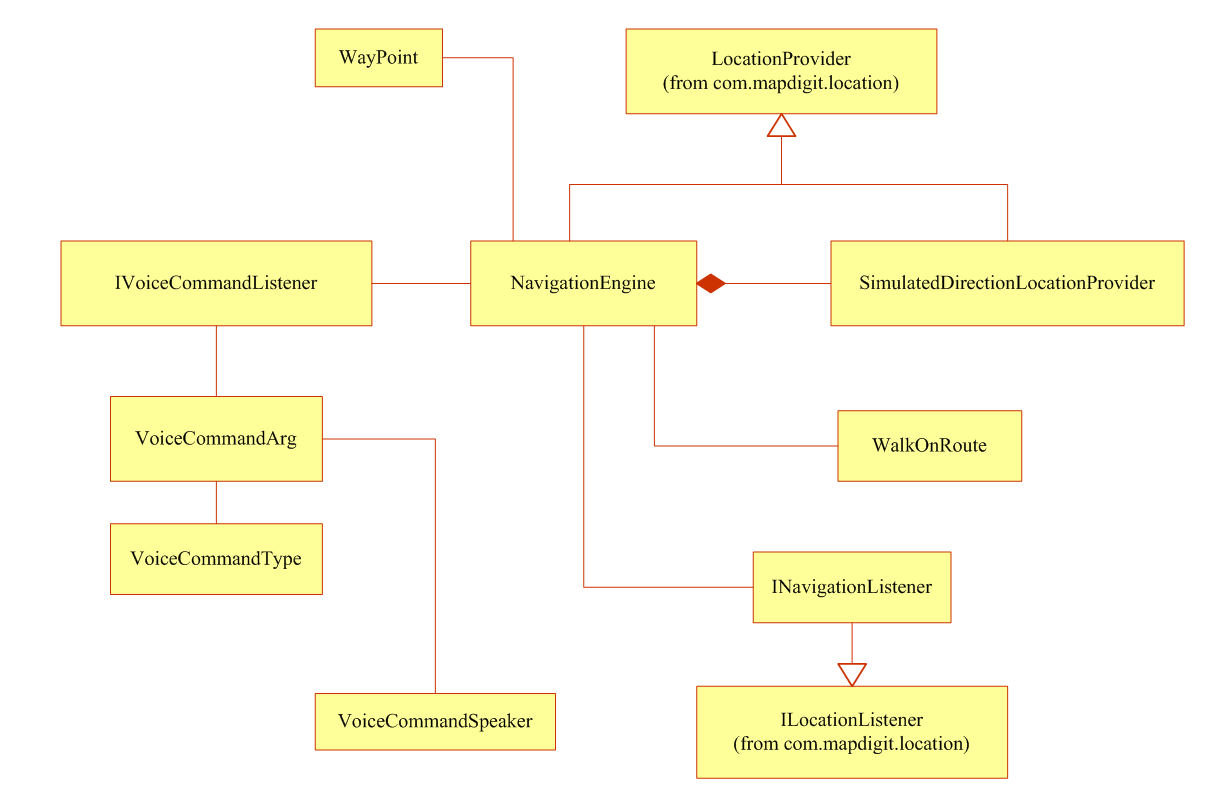

Classes defined in this package

WayPoint	Define a navigation way point; it defines the name and Lat/Lng pair.
NavigationEngine	Navigation Engine, it internal has a navigation simulation thread ,it support turn by turn navigation , has on road and off road navigation mode, rerouting support etc.
SimulatedDirectionLocationProvider	Simulation location provider, it uses a MapDirection object as the simulation source.
VoiceCommandArg	Voice command argument class, which defines command type, command argument (which usually is the current road name)
VoiceCommandSpeaker	Default implementation for audio command player.
VoiceCommandType	Define all navigation command type, such as distance to a turn, turn left ,turn right etc.
WalkOnRoute	Current position on the route (nearest).
INavigationListener	Navigation listener, which monitor the status of the navigation engine, location update, rerouting status etc.
IVoiceCommandListener	Voice command listener.

Guidebee Map API –Package Gis.Location

The location packages defines API provide a common interface for GPS devices. The implementations provide a wrapper classes for JSR179 API, and also support NMEA compatible devices.

Coordinates	The Coordinates class represents coordinates as latitude-longitude-altitude values.
Location	The Location class represents the standard set of basic location information.
LocationProvider	This is the starting point for applications using location information in this API and represents a source of the location information.
Orientation	The Orientation class represents the physical orientation of the terminal.
QualifiedCoordnates	The QualifiedCoordinates class represents coordinates as latitude-longitude-altitude values that are associated with an accuracy value
JSR179LocationProvider	Wrapper class for JSR179 API locationProvider
NMEACompatibleLocationProvider	Base class for NMEA compatible devices.

Guidebee Map API –Package Gis.Vector

Vector package define objects for vector map

SutherlandHodgman	Implements Sutherland-Hodgman clip algorithm.
VectorMap	VectorMap is the basic building blocks for Guidebee vector map. Each map is consists of multiple map Layers.
GeoSet	The Geoset object is built off the Map object and allows you to define a geoset. A Geoset is a collection of map layers and their settings.
MapFeatureLayer	MapLayer defines a map layer.Computer maps are organized into layers.
MapFeature	MapFeature defines a map feature in a map layer.
DataTable	Defines one tabular database table
DataField	Defines a field of a database table.
DataRowValue	Defines a row of a database table.
FindCondition	Defines a find condition when search for records.
FindConditions	Defines a find condition collection when search for records.

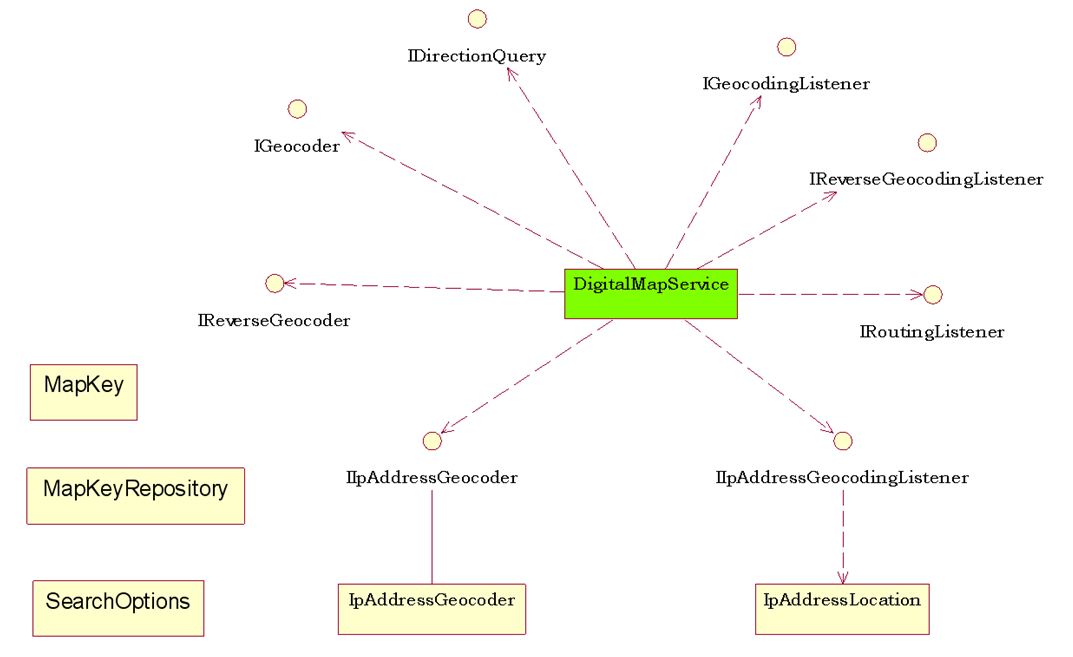

Guidebee Map API –Package Gis.Service

The service defines interface for Digital map services (Geocoding, reverse Geocoding and routing etc).

DigitalMapServer	Default implementation for Map Service (routing, Geocoding ,reverse Geocoding)
IDirectionQuery	Interface to query routing information..
IGeocoder	Interface to find address.
IReverseGeocoder	Interface to find address based on its latitude and longitude.
IIpaddressGeocoder	Interface to find address based on its ip address (may not included in this release).
IGeocodingListener	Call back when Geocoding is done.
IReverseGeocodingListener	Callback when reverse Geocoding is done.
IRoutingListener	Callback when routing is done.
IIpaddressGeocodingListener	Callback when IP Geocoding is done.
IpAddressGeocoder	Default implementation of IP Geocoding service.
MapKey	Define map key used by map services
MapKeyRepository	Manage map keys
SearchOption	Define options for using map services.

Guidebee Map API –Package Gis.Raster

The raster package defines object used to raster maps (online or stored map)

Map Type	Define different map types (Google, Microsoft Live, Yahoo etc).
MapConfiguration	To fit for different device capability (memory size, screen size), the Map API can be configured to turn on/off cache, drawing routing polyline or not etc).these configuration will effect memory usage and performance of the Map API.
RasterMap	A core map class used to display map from server or from stored map file, provide panning, zooming etc.
MapTileAbstractReader	An abstract class defined how map tiles is obtained, connecting to map server, reading from local map files or rendering the vector map.
MapTileDownloader	MapTileDownloader download map image tiles from server (msn, yahoo, etc).
MapTileStreamReader	Read map image tiles from a input stream (mostly from local map file)
MapTileZone	A predefined stored map file. Developer can define their own stored map file format, if only it derives from MapTileAbstractReader.
IReaderListener	A listener used to monitor the progress of the reading
IMapDrawingListener	When a map reader finish downloading/reading/rendering a map tile, it trigs the listener to notify a map tile is available.

Guidebee Map API –Package Gis.Drawing

This package define a common interface for different Graphics System, such as MIDP Graphics or LWUIT  Graphics classes, with these interfaces ,Guidebee Digital Map can be used with different graphics systems.

AbstractGraphcsFactory	Factor class, used to create other graphics objects like font, graphics ,images etc.
IGraphics	Interface for Graphics object used to draw font, images etc, .
IFont	Font interface.
IImage	Image interface.
